36RAGTOP, I have 2 extra jack support brackets. If you are interested send me a PM.

Filling Station - Chevrolet & GMC Reproduction Parts


Filling Station


Joined: Sep 2004
Posts: 406
Backyard Mechanic
Offline
Backyard Mechanic
Joined: Sep 2004
Posts: 406

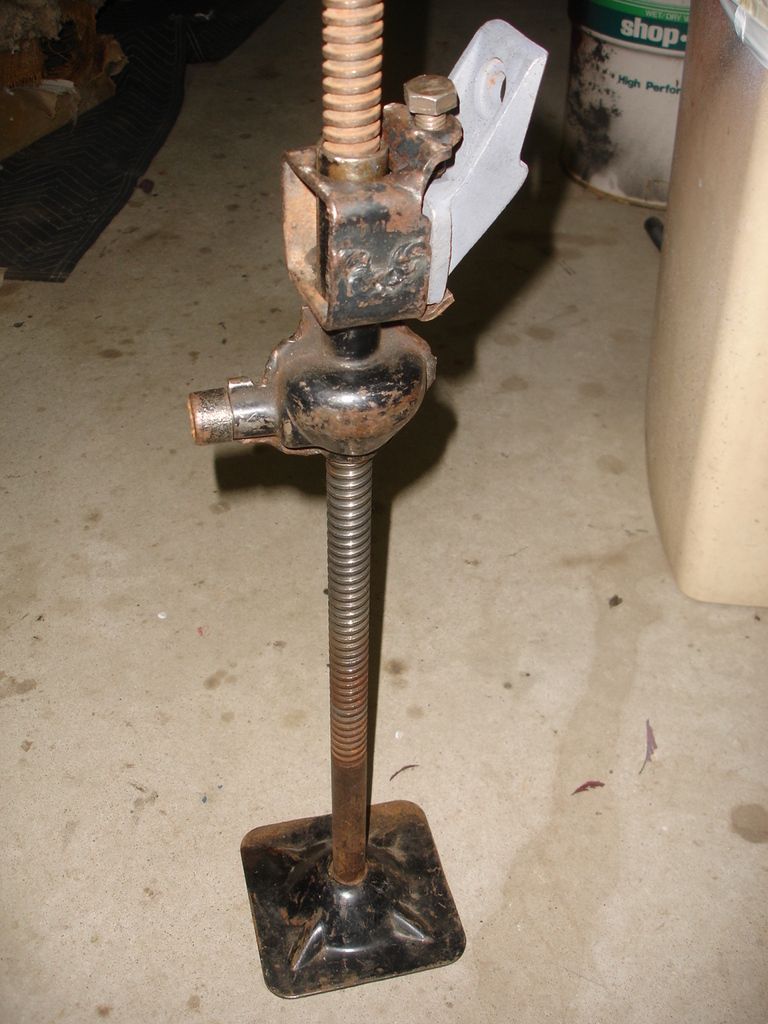

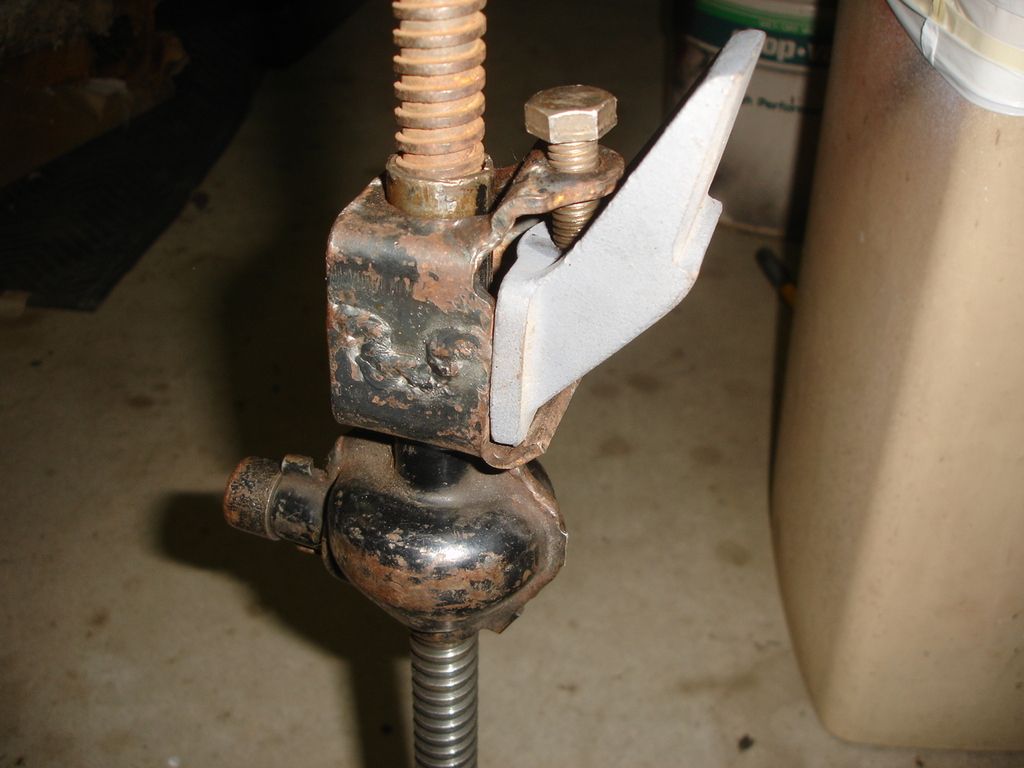

Here's what I have for a 36 jack.

With the jack support bracket attached. Bolt is not factory, don't know what the original was. The weld on the side looks like a repair. [Linked Image from i1243.photobucket.com]
[Linked Image from i1243.photobucket.com]
[Linked Image from i1243.photobucket.com]

Jack handle does not have the 90 degree bend on the end either. [Linked Image from i1243.photobucket.com]

Joined: Dec 2001
Posts: 145
Shade Tree Mechanic
Offline
Shade Tree Mechanic
Joined: Dec 2001
Posts: 145
Originally Posted by Chev Nut
Mike, Does the basic jack look correct except for what you mentioned?
Perhaps there were more than one style OR manufactor.

Yes it looks like that.

You may be correct about different manufactures, but I've still only ever seen the straight blade ones.

Mike B :)


Mike Boteler
1935 Master Technical Advisor
Joined: Dec 2001
Posts: 145
Shade Tree Mechanic
Offline
Shade Tree Mechanic
Joined: Dec 2001
Posts: 145
Originally Posted by leagl
Here's what I have for a 36 jack.

With the jack support bracket attached. Bolt is not factory, don't know what the original was. The weld on the side looks like a repair. [Linked Image from i1243.photobucket.com]
[Linked Image from i1243.photobucket.com]
[Linked Image from i1243.photobucket.com]

Jack handle does not have the 90 degree bend on the end either. [Linked Image from i1243.photobucket.com]

That's it (jack, base and handle)! It's correct for the 1935 Master and 1936 Master and Standard.

The bolt will have a tapered point so it will screw down onto the bracket hole, this wedges the jack tight to the bracket. The bolt also has a screwdriver slot cut into the top of the bolt head.

Mike B :)

Last edited by 1935 Master Tech Advisor; 11/29/16 11:00 PM.

Mike Boteler
1935 Master Technical Advisor
Joined: Oct 2015
Posts: 345
Likes: 1
Backyard Mechanic
OP Offline
Backyard Mechanic
Joined: Oct 2015
Posts: 345
Likes: 1
Originally Posted by chef-chevy
I am always happy to post any pictures for anyone in need My contact info is in my profile....We do not know what the jack looks like yet???
will post pics of mine as soon as it gets here.
but a few 35-36 items from the same guy.
but need a good used, or N.O.S pass front fender now

Joined: Oct 2015
Posts: 345
Likes: 1
Backyard Mechanic
OP Offline
Backyard Mechanic
Joined: Oct 2015
Posts: 345
Likes: 1
Originally Posted by 36RAGTOP
[quote=chef-chevy]I am always happy to post any pictures for anyone in need My contact info is in my profile....We do not know what the jack looks like yet???

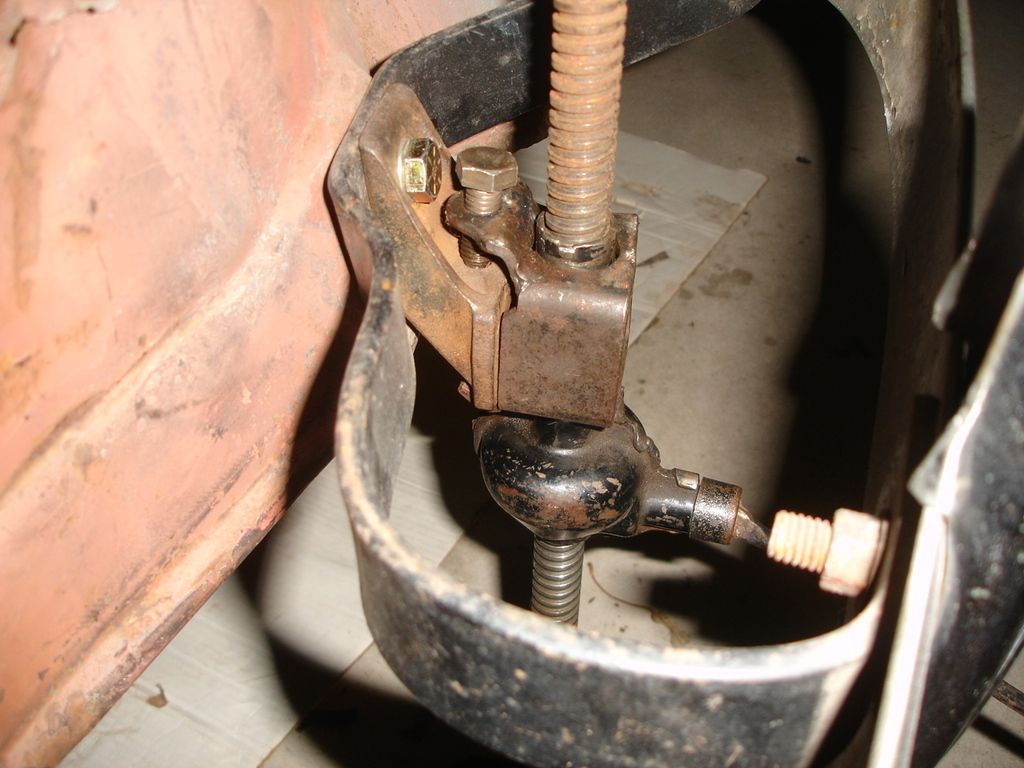

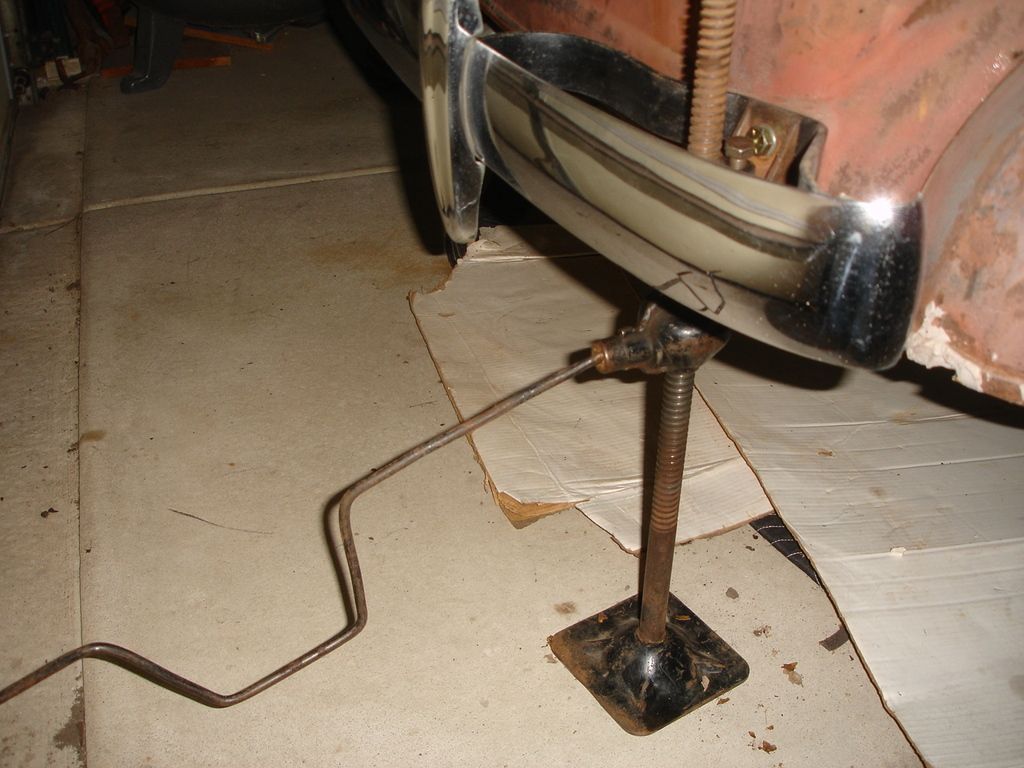

MY JACK CAME IN TODAY
need measurements of the crank handle so i can copy one
[Linked Image from i67.tinypic.com]
[Linked Image from i66.tinypic.com]
[Linked Image from i68.tinypic.com]

Joined: May 2002
Posts: 3,578
ChatMaster - 3,000
Offline
ChatMaster - 3,000
Joined: May 2002
Posts: 3,578
Great pics,thank you

Joined: Oct 2015
Posts: 345
Likes: 1
Backyard Mechanic
OP Offline
Backyard Mechanic
Joined: Oct 2015
Posts: 345
Likes: 1
Originally Posted by chef-chevy
Great pics,thank you
Are you matching pictures up to a 35/36 jack you have?

Joined: May 2002
Posts: 3,578
ChatMaster - 3,000
Offline
ChatMaster - 3,000
Joined: May 2002
Posts: 3,578
No sorry have never seen the jack

Joined: Oct 2015
Posts: 345
Likes: 1
Backyard Mechanic
OP Offline
Backyard Mechanic
Joined: Oct 2015
Posts: 345
Likes: 1
Originally Posted by chef-chevy
No sorry have never seen the jack
ive never seen a jack like ths myself
but would like to know if gm used this screw type jack on other models

Joined: Jan 2002
Posts: 30,701
Likes: 141
ChatMaster - 25,000
Offline
ChatMaster - 25,000
Joined: Jan 2002
Posts: 30,701
Likes: 141
This jack was used on 1935 Master and 1936 Master and Standard cars only and not on any other GM cars.


Gene Schneider
Joined: Sep 2004
Posts: 406
Backyard Mechanic
Offline
Backyard Mechanic
Joined: Sep 2004
Posts: 406
36RAGTOP, check your messages concerning the jack handle.

Joined: Oct 2015
Posts: 345
Likes: 1
Backyard Mechanic
OP Offline
Backyard Mechanic
Joined: Oct 2015
Posts: 345
Likes: 1
THANKS!

Joined: Oct 2015
Posts: 345
Likes: 1
Backyard Mechanic
OP Offline
Backyard Mechanic
Joined: Oct 2015
Posts: 345
Likes: 1

it`s just the long screw reminded me of the 42 top mech
same design moved the top rack,,,, never seem it used on anything else

Joined: Oct 2015
Posts: 345
Likes: 1
Backyard Mechanic
OP Offline
Backyard Mechanic
Joined: Oct 2015
Posts: 345
Likes: 1
this came in from the same guy
[Linked Image from i63.tinypic.com]

Joined: Oct 2015
Posts: 345
Likes: 1
Backyard Mechanic
OP Offline
Backyard Mechanic
Joined: Oct 2015
Posts: 345
Likes: 1
Got the bumper "jack pick up points" in,
thank you,,,,
got a neat sketch of a crank handle, looks great to use as a template.
thanks gents!
BIG HELP

Joined: Nov 2005
Posts: 271
Backyard Mechanic
Offline
Backyard Mechanic
Joined: Nov 2005
Posts: 271
At the 2016 Hershey swap meet there was a company with a very large variety of old car jacks for sale. Most of them were tagged with the brand of car they were from. I found one marked 1935 Standard but I did not buy it as I was not totally convinced. A little while later I found another at one third the price and bought it. It is made of pressed metal (not cast) and stands app. 5 inches high and extends to about 9 1/2 inches. Is this the right one or can someone tell me what I should be looking for.


RonDaw
Joined: Oct 2015
Posts: 345
Likes: 1
Backyard Mechanic
OP Offline
Backyard Mechanic
Joined: Oct 2015
Posts: 345
Likes: 1
we have plenty of pictures of the correct 35/36 jack posted up
can you post up pics of the jack you bought?

Joined: Nov 2005
Posts: 271
Backyard Mechanic
Offline
Backyard Mechanic
Joined: Nov 2005
Posts: 271
I believe the jack for a 1935 Standard would be a conventional type unlike the bumper style jacks shown in the photos.

Joined: Jan 2002
Posts: 30,701
Likes: 141
ChatMaster - 25,000
Offline
ChatMaster - 25,000
Joined: Jan 2002
Posts: 30,701
Likes: 141
Yes, The Standard used an under axle screw jack. I have searched my material and can not find a picture of the mid 1930's screw jacks. The same jack would have been used for 1/2 ton trucks.


Gene Schneider
Joined: Nov 2005
Posts: 271
Backyard Mechanic
Offline
Backyard Mechanic
Joined: Nov 2005
Posts: 271
Will be seeing my daughter over Christmas and hopefully she may be able to post some photos of what I have. At 5 inches tall it sits well below the axles and a block of wood would be required as a spacer but on the other hand I cant think of any other car that this jack would work on with out a spacer.


RonDaw
Joined: Nov 2005
Posts: 271
Backyard Mechanic
Offline
Backyard Mechanic
Joined: Nov 2005
Posts: 271

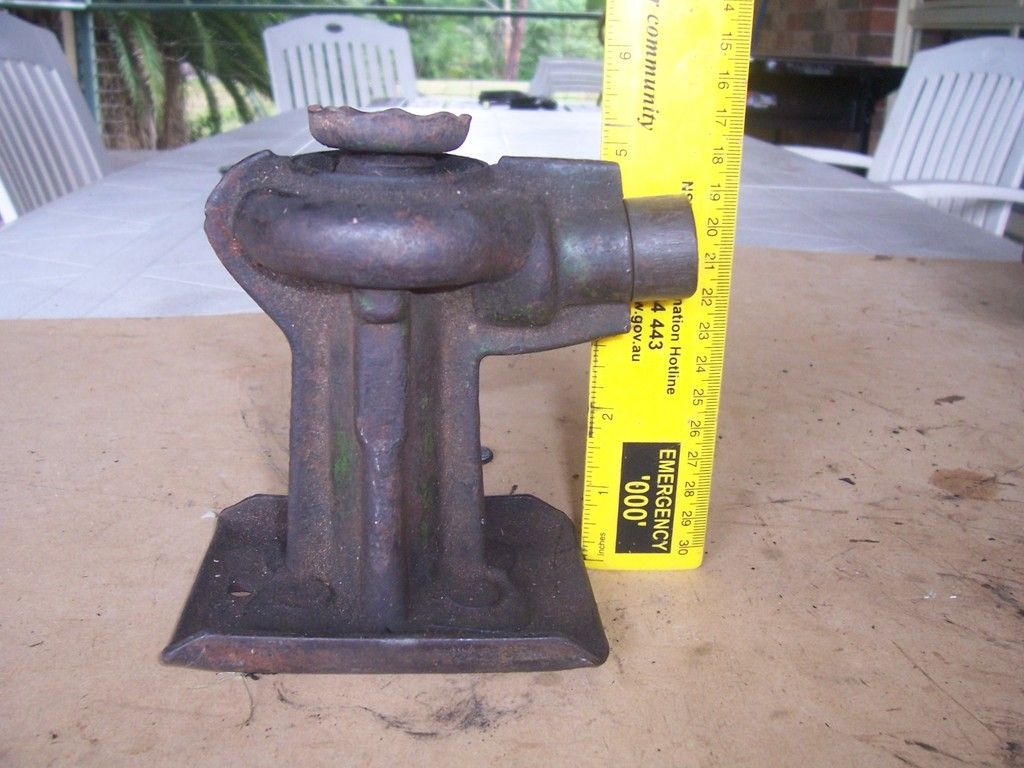

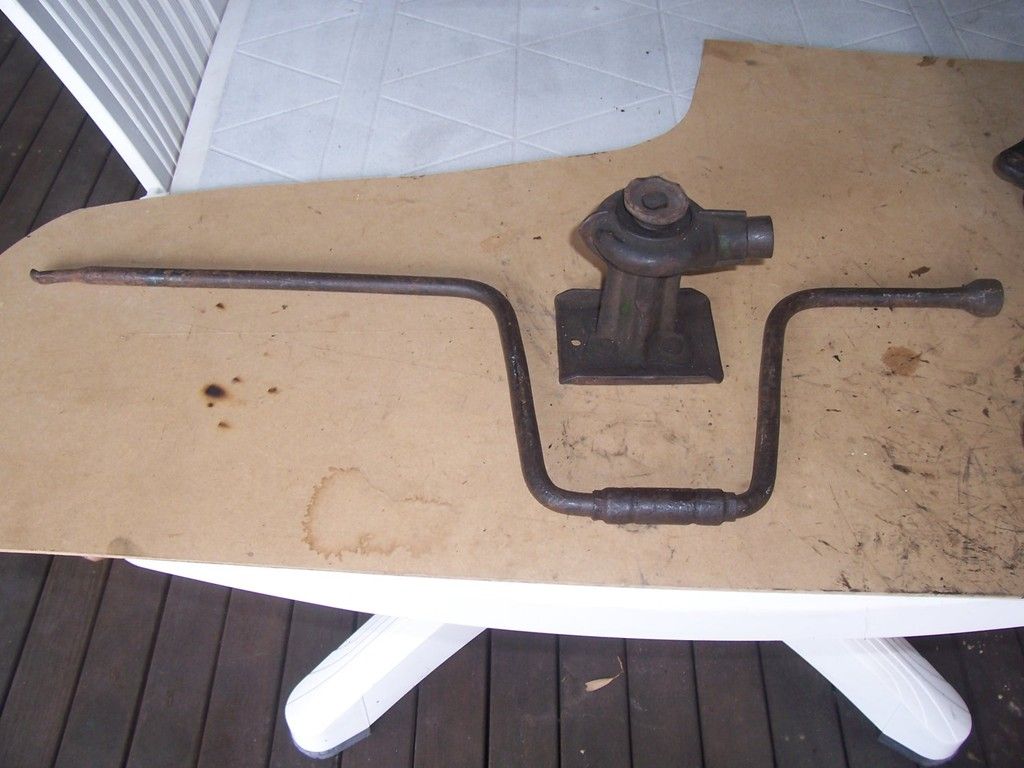

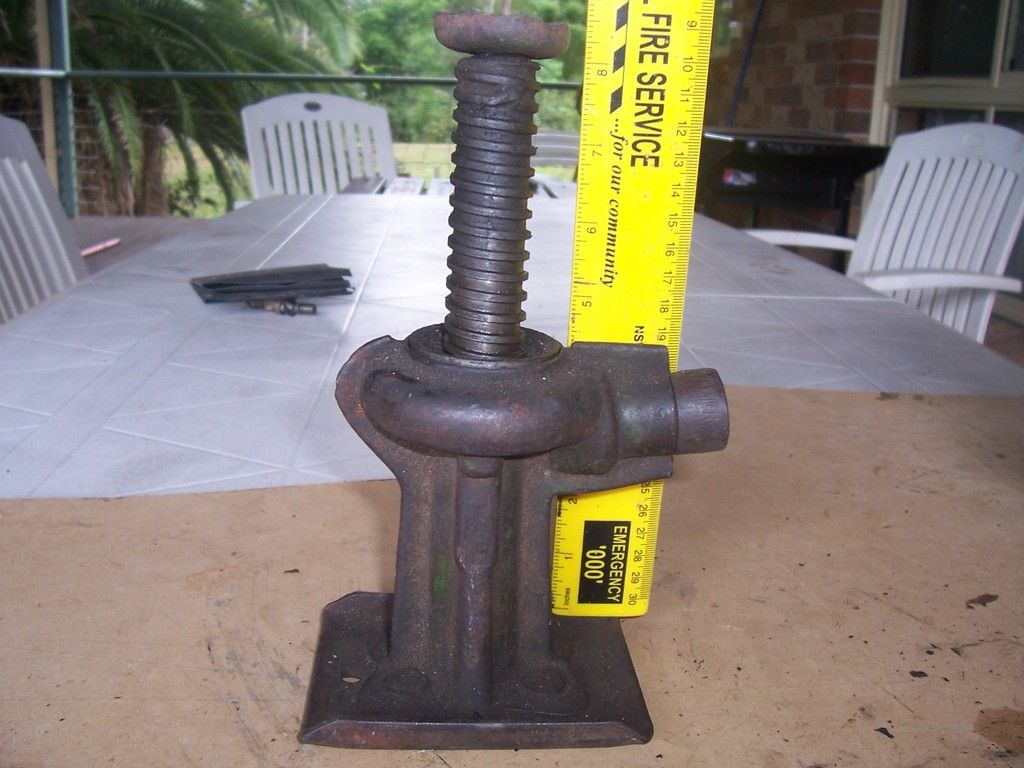

Here is a couple of photos of the jack I bought. Do owners of 1933 - 1935 Standards recognise it or does anyone know what else it may have come from.

[Linked Image from i1266.photobucket.com]

[Linked Image from i1266.photobucket.com]

[Linked Image from i1266.photobucket.com]


RonDaw
Joined: Jul 2006
Posts: 1,884
Likes: 12
ChatMaster - 1,500
Offline
ChatMaster - 1,500
Joined: Jul 2006
Posts: 1,884
Likes: 12
Ron, This Jack looks very much like the one in my 35 Standard. Base is 3-1/4" x 4-1/2" approx. Height is about 6-1/4" down. I bought mine on e-bay for 5.00 as nobody knew what is was for. I have some doubts about the Handle though.


Jon T.
Joined: Jan 2002
Posts: 30,701
Likes: 141
ChatMaster - 25,000
Offline
ChatMaster - 25,000
Joined: Jan 2002
Posts: 30,701
Likes: 141
I found the folling info. for the 1935 jack.
The lowered measurement was 8 1/16" and raised was 14 1/16".
I would GUESS the handle folded in half and was rather thin for storage.
Also the jack was recommended to be placed under the spring next to the axle rather than under the axle proper. Probably due to the flatter surface.
From the description in the parts book the handle attached to the jack with either a square fitting or a hook, two types.From the 1932 manual the hook end can be seen.

Last edited by Chev Nut; 12/26/16 01:39 PM.

Gene Schneider
Joined: Nov 2005
Posts: 271
Backyard Mechanic
Offline
Backyard Mechanic
Joined: Nov 2005
Posts: 271
When I bought my 1935 Standard in the late sixties it had a jack that sounds like the one you described Gene but I accidentally left it in a sedan I sold. It had a square hole for the handle whereas this jack has a hook arrangement. Is it possible the hook type was a shorter version like this one and the one Jon has?


RonDaw
