Does any one have the physical dimensions of a 409 or a link to a source?


Best Regards, Pat
Filling Station - Chevrolet & GMC Reproduction Parts


Filling Station


Pat S #325975 11/27/14 02:11 PM
Joined: Dec 2001
Posts: 2,142
Likes: 3
ChatMaster - 2,000
Offline
ChatMaster - 2,000
Joined: Dec 2001
Posts: 2,142
Likes: 3
It is 1 1/2" longer, 2 1/2" wider and 7/8" lower then a small block. Why?


John



1954 Belair Sport Coupe
1960 2 door Impala Hardtop 348/340HP 4spd
1962 2 door Impala Hardtop 409/409 4spd
1962 2 Door Biscayne Sedan 327/250 Auto
1977 Monza Mirage 305 4 Speed
1988 Celebrity Wagon
2018 GMC Sierra 2500 HD Diesel
Joined: Jan 2002
Posts: 1,869
Pat S Offline OP
ChatMaster - 1,500
OP Offline
ChatMaster - 1,500
Joined: Jan 2002
Posts: 1,869
Because I want to build a model of a 702 and the heads and valve covers look like the 348/409 engines. While the 702 is a y block (60 degrees) I thought I would use model 409's as a base. I just wanted to know how they compare.


Best Regards, Pat
Pat S #326039 11/28/14 08:58 AM
Joined: Apr 2008
Posts: 1,194
ChatMaster - 1,000
Offline
ChatMaster - 1,000
Joined: Apr 2008
Posts: 1,194
The spark plugs are above the valve covers on the top of the head while the 409 has the spark plugs below the valve covers. The width of the intake manifold is significantly larger on the 409.

Joined: Dec 2001
Posts: 2,142
Likes: 3
ChatMaster - 2,000
Offline
ChatMaster - 2,000
Joined: Dec 2001
Posts: 2,142
Likes: 3
Don, you might want to check that. The intake is surprisingly wider on the small block. I just checked and I got 9 1/2 on a 2x4 409 intake and the 10 1/4" on a Q=Jet small block intake. The deck width on the 409 is 7" and 5 3/4" on the small block. Nothing scientific just with a tape measure and my eye.
(I checked the decks on some blocks I got laying around the shop, same with the intakes)


John



1954 Belair Sport Coupe
1960 2 door Impala Hardtop 348/340HP 4spd
1962 2 door Impala Hardtop 409/409 4spd
1962 2 Door Biscayne Sedan 327/250 Auto
1977 Monza Mirage 305 4 Speed
1988 Celebrity Wagon
2018 GMC Sierra 2500 HD Diesel
Joined: Jan 2002
Posts: 1,869
Pat S Offline OP
ChatMaster - 1,500
OP Offline
ChatMaster - 1,500
Joined: Jan 2002
Posts: 1,869
Originally Posted by donsbigtrucks
The spark plugs are above the valve covers on the top of the head while the 409 has the spark plugs below the valve covers. The width of the intake manifold is significantly larger on the 409.

I went back and looked at pictures of the 702 and I had never noticed the spark plugs inside the vee. I guess it'll have to be scratch built.


Best Regards, Pat
Pat S #326113 11/28/14 10:13 PM
Joined: Jan 2002
Posts: 1,869
Pat S Offline OP
ChatMaster - 1,500
OP Offline
ChatMaster - 1,500
Joined: Jan 2002
Posts: 1,869

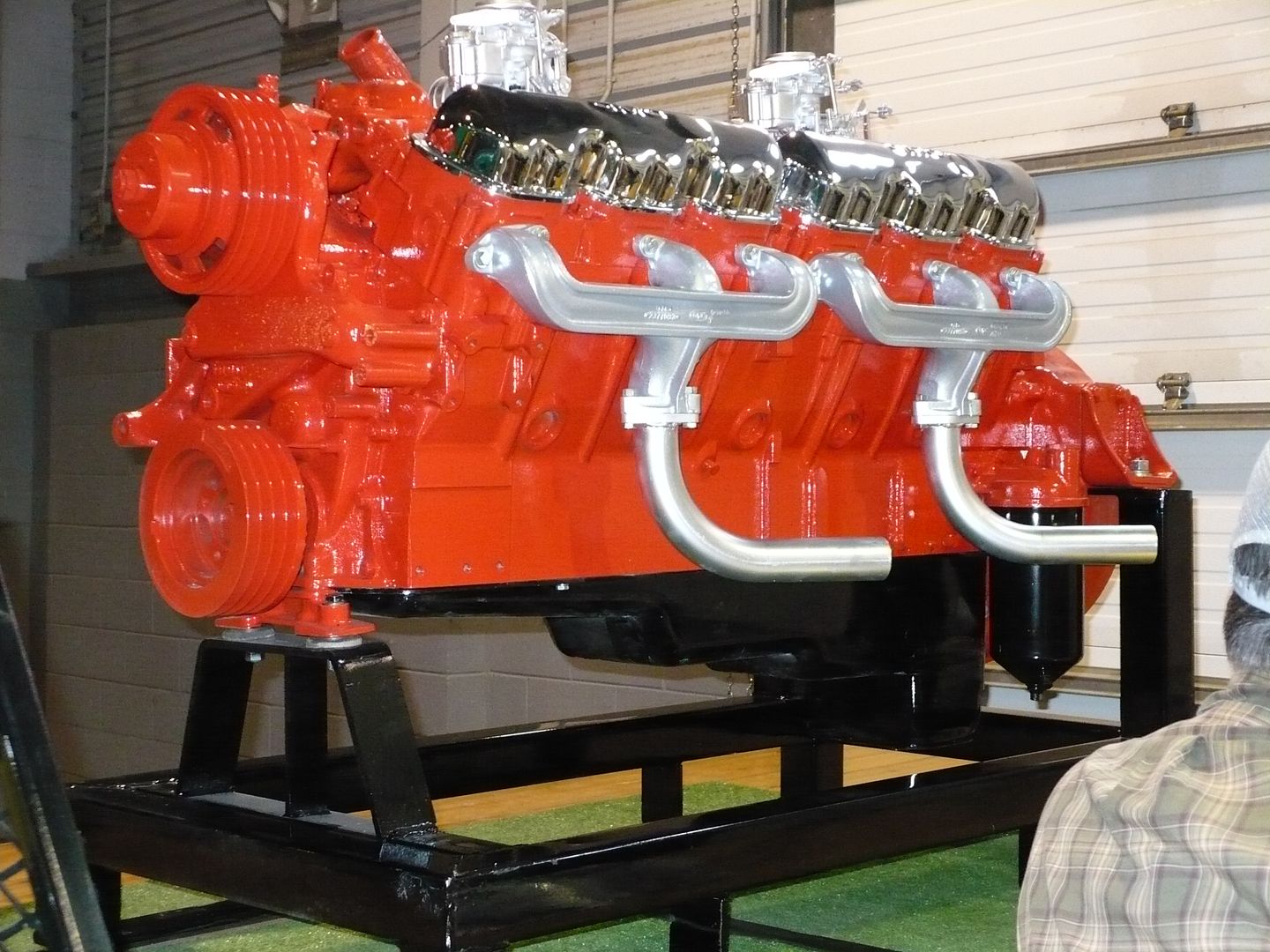

Come to think of it, the valve covers don't look THAT much like those on the 409 either. It was a good idea while it lasted.

[Linked Image from i1176.photobucket.com]


Best Regards, Pat
Pat S #326151 11/29/14 08:38 AM
Joined: May 2002
Posts: 6,149
Likes: 42
ChatMaster - 6,000
Offline
ChatMaster - 6,000
Joined: May 2002
Posts: 6,149
Likes: 42
If it wasnt for the fuel that would use and the overall length I would think about putting that in my 38.
Tony


1938 1/2 ton Hope to drive it before I retire
tonyw #326159 11/29/14 09:29 AM
Joined: Jan 2002
Posts: 1,869
Pat S Offline OP
ChatMaster - 1,500
OP Offline
ChatMaster - 1,500
Joined: Jan 2002
Posts: 1,869
I imagine they aren't the most economical. I've seen a few rods with these on the web while looking for dimensions. that is why I was asking about the 409, I thought I might use them as a base but they are very different.


Best Regards, Pat
