I'm ready to install my vacuum wiper motor but need help.
Is there a seal or washer under the chrome nut that secures the wiper motor where it exits the body?
What is the function of the beveled cast pieces on the shaft between the housing and the threads on the shaft?
Any advice would be greatly appreciated.
Stu

Filling Station - Chevrolet & GMC Reproduction Parts


Filling Station


Joined: Nov 2002
Posts: 3,163
ChatMaster - 3,000
Offline
ChatMaster - 3,000
Joined: Nov 2002
Posts: 3,163
I think that beveled piece goes against the w/s header on the outside as it's not flat
...Joe


See America's First...Chevrolet

1931 Sedan Delivery 31570
1933 Standard Sports Coupe 33628.
1934 Master Sedan Delivery Canadian 177/34570
1968 Z/28 Camaro
1969 SS 396 Camaro
Joined: Apr 2002
Posts: 598
Oil Can Mechanic
Offline
Oil Can Mechanic
Joined: Apr 2002
Posts: 598
There is a rubber washer between the chrome piece and body on a 36.
Richard


I try to be the person my dog thought I was.
Joined: Jan 2002
Posts: 1,869
ChatMaster - 1,500
Offline
ChatMaster - 1,500
Joined: Jan 2002
Posts: 1,869
I believe Joe is correct. That is how I installed mine.


Best Regards, Pat
Joined: Jan 2002
Posts: 1,869
ChatMaster - 1,500
Offline
ChatMaster - 1,500
Joined: Jan 2002
Posts: 1,869

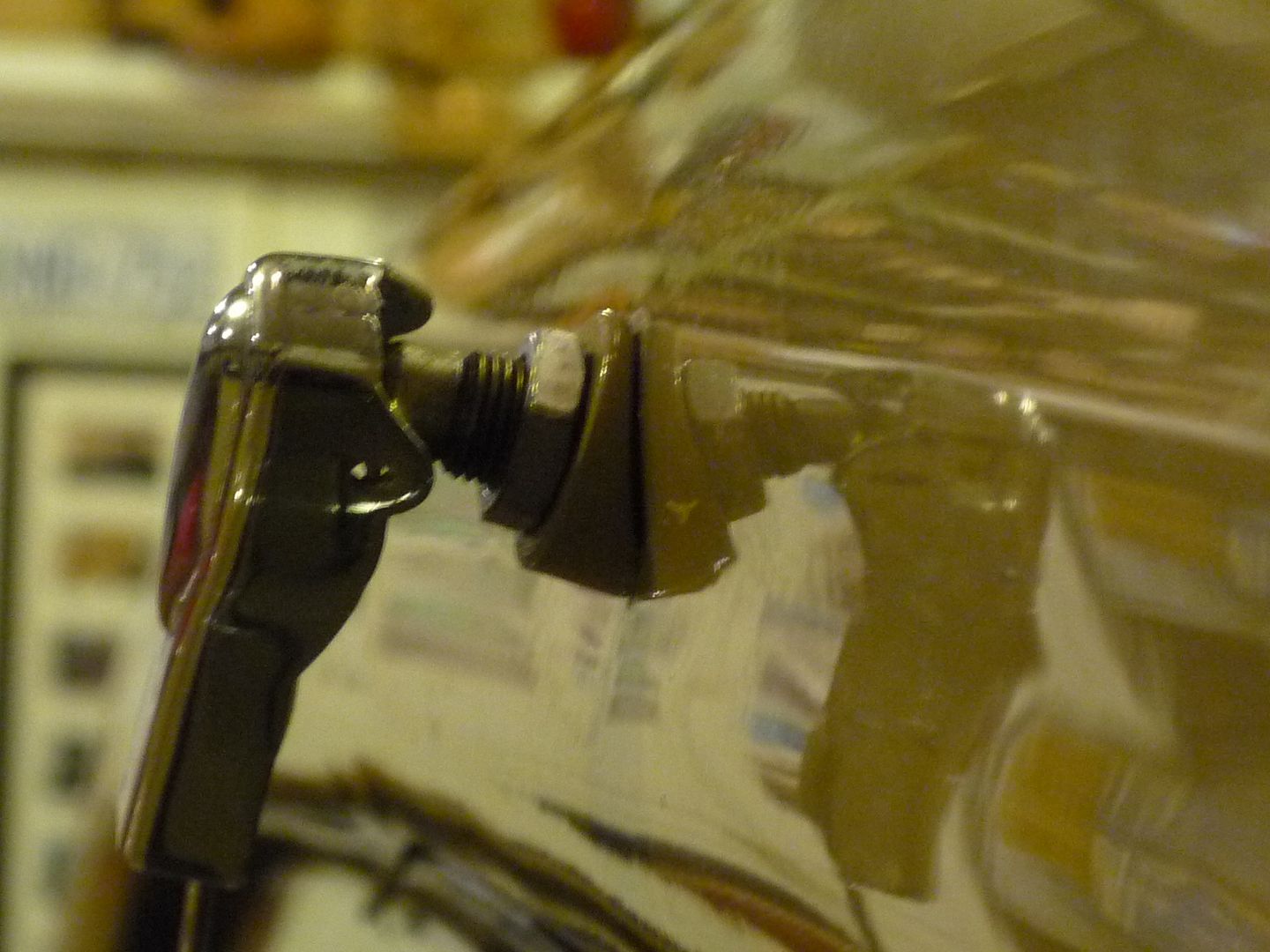

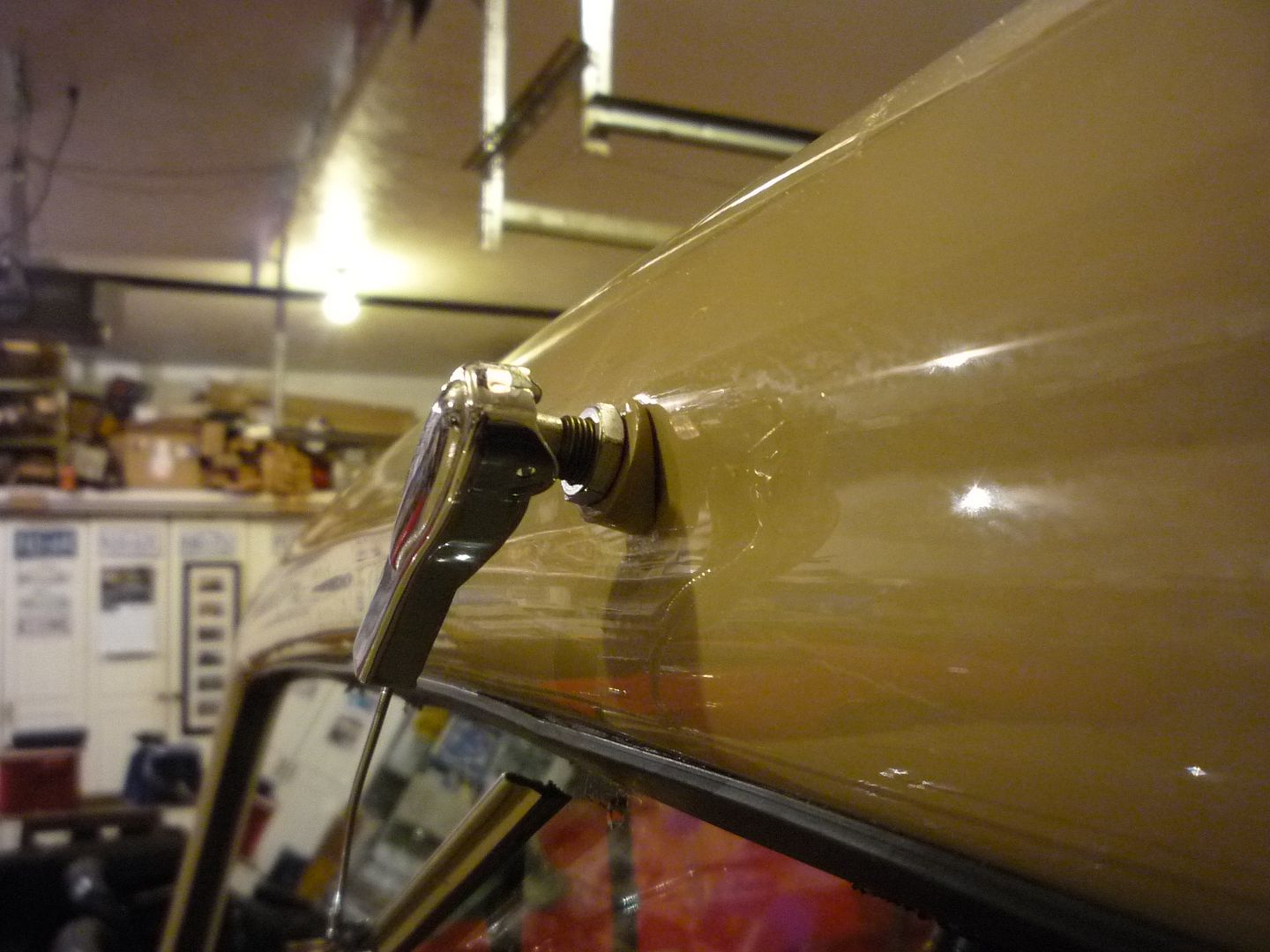

Here's a couple of shots.

[Linked Image from i1176.photobucket.com]

[Linked Image from i1176.photobucket.com]


Best Regards, Pat
Joined: Jan 2003
Posts: 977
Likes: 7
ChatMaster - 750
Offline
ChatMaster - 750
Joined: Jan 2003
Posts: 977
Likes: 7
Stuscar, there is a rubber washer that goes between the car body and the chrome spacer, then an internal-tooth shakeproof lock washer, and finally the nut.


Bill Masters
Joined: Jan 2002
Posts: 1,869
ChatMaster - 1,500
Offline
ChatMaster - 1,500
Joined: Jan 2002
Posts: 1,869
So I'm missing a few parts here. Is that just a plain washer?


Best Regards, Pat
Joined: Jan 2003
Posts: 977
Likes: 7
ChatMaster - 750
Offline
ChatMaster - 750
Joined: Jan 2003
Posts: 977
Likes: 7
Pat, here is a link to the 1929-41 parts book that shows a picture of the shakeproof washer (group number 8.932). The internal tooth washer is the picture second from the left.
http://chevy.oldcarmanualproject.com/parts/1929_41/41cp222.html

This is a better picture. I think it is 5/16 inch, but I can't remember.
http://www.fastenersuperstore.com/w...washers?gclid=CMn15vCs_rgCFUyi4AodEV4AgA


Bill Masters
Joined: Oct 2004
Posts: 59
stuscar Offline OP
Shade Tree Mechanic
OP Offline
Shade Tree Mechanic
Joined: Oct 2004
Posts: 59
Thanks, Guys! I have all the pieces but couldn't remember how they were assembled.
Stu

Joined: Jan 2002
Posts: 1,869
ChatMaster - 1,500
Offline
ChatMaster - 1,500
Joined: Jan 2002
Posts: 1,869
Originally Posted by Bill Masters
Pat, here is a link to the 1929-41 parts book that shows a picture of the shakeproof washer (group number 8.932). The internal tooth washer is the picture second from the left.
http://chevy.oldcarmanualproject.com/parts/1929_41/41cp222.html

This is a better picture. I think it is 5/16 inch, but I can't remember.
http://www.fastenersuperstore.com/w...washers?gclid=CMn15vCs_rgCFUyi4AodEV4AgA

Is the rubber washer just a plain washer?


Best Regards, Pat
Joined: Apr 2002
Posts: 598
Oil Can Mechanic
Offline
Oil Can Mechanic
Joined: Apr 2002
Posts: 598

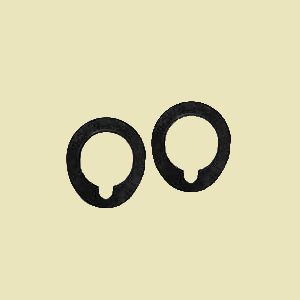

[Linked Image from i645.photobucket.com] These are for a 36 and up.


I try to be the person my dog thought I was.
Joined: Jan 2003
Posts: 977
Likes: 7
ChatMaster - 750
Offline
ChatMaster - 750
Joined: Jan 2003
Posts: 977
Likes: 7
Pat, I used a flat piece of rubber about 1/32" or more. First, I punched a hole in it to fit around the wiper motor's shaft, then slid the spacer on, then ran the nut down finger-tight, traced around the spacer with a ballpoint pen and cut it out.


Bill Masters
Joined: Jan 2002
Posts: 1,869
ChatMaster - 1,500
Offline
ChatMaster - 1,500
Joined: Jan 2002
Posts: 1,869
Thanks Bill. I suppose there is no chance of the motor falling back in with the windshield header trim in place.


Best Regards, Pat
Joined: Jan 2003
Posts: 977
Likes: 7
ChatMaster - 750
Offline
ChatMaster - 750
Joined: Jan 2003
Posts: 977
Likes: 7
I don't think it will fall. If needed, you should be able to hold it against the body from inside the car with one hand applying pressure against the wiper motor controls while threading the nut onto the shaft with your other hand.


Bill Masters
