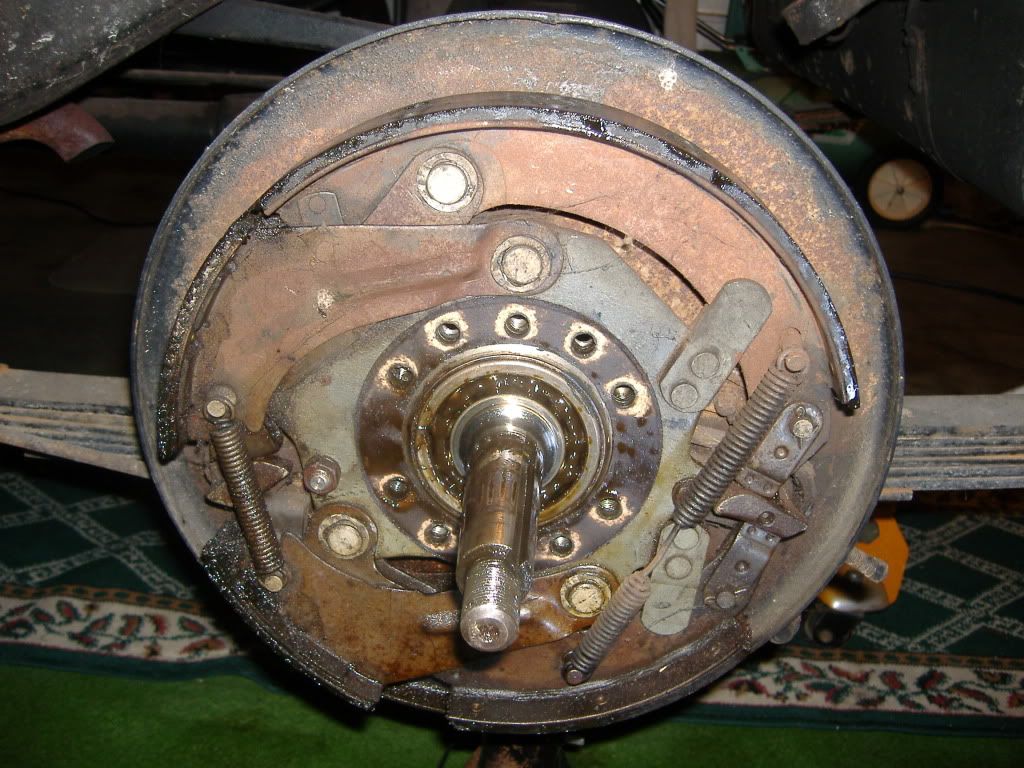

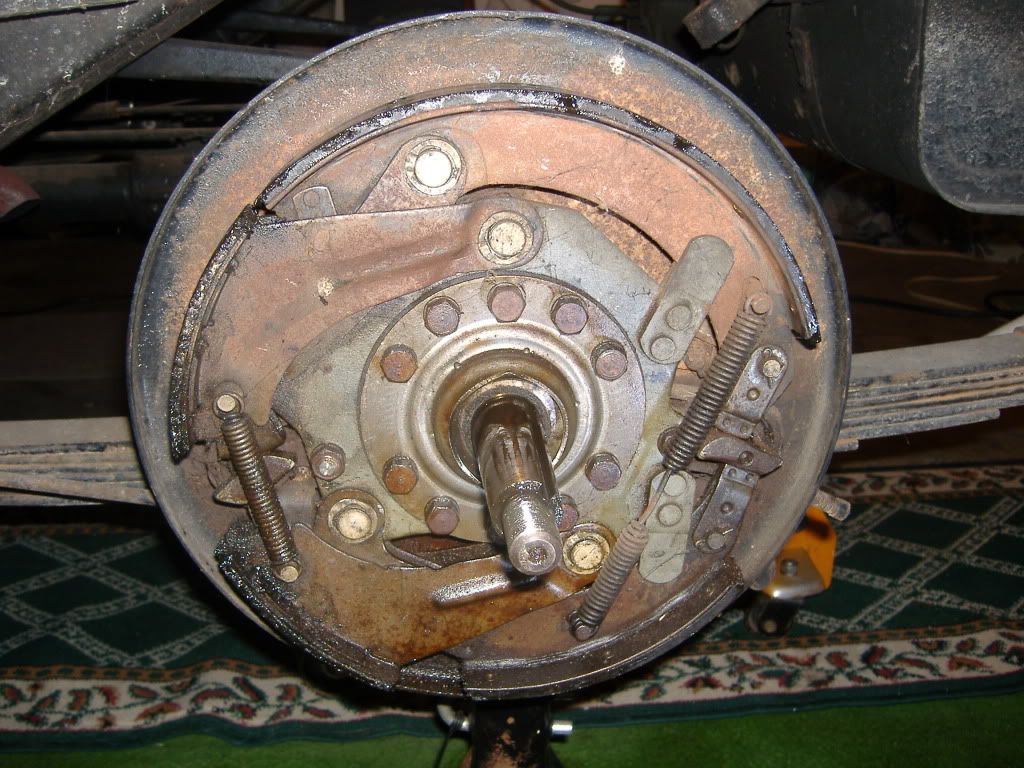

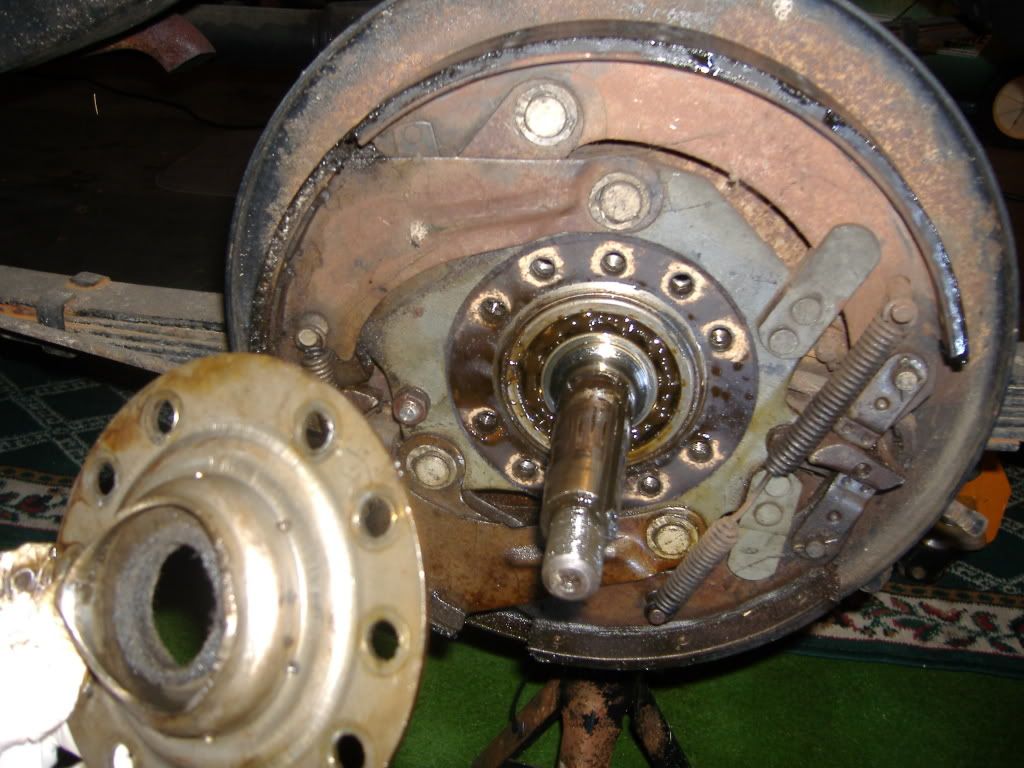

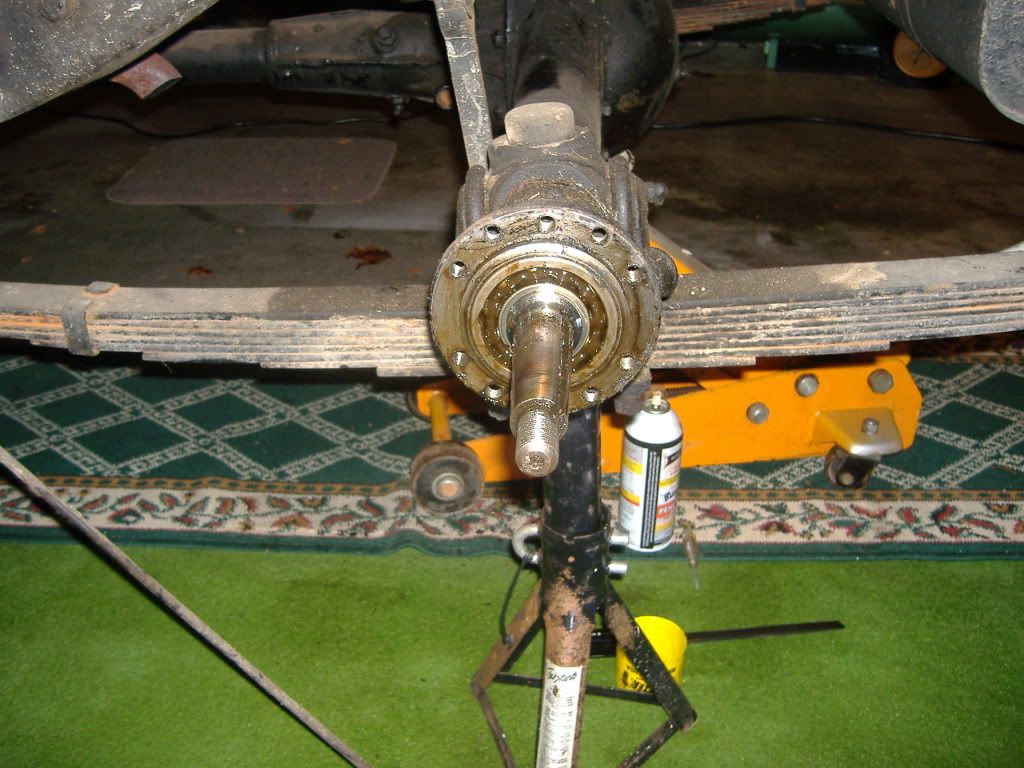

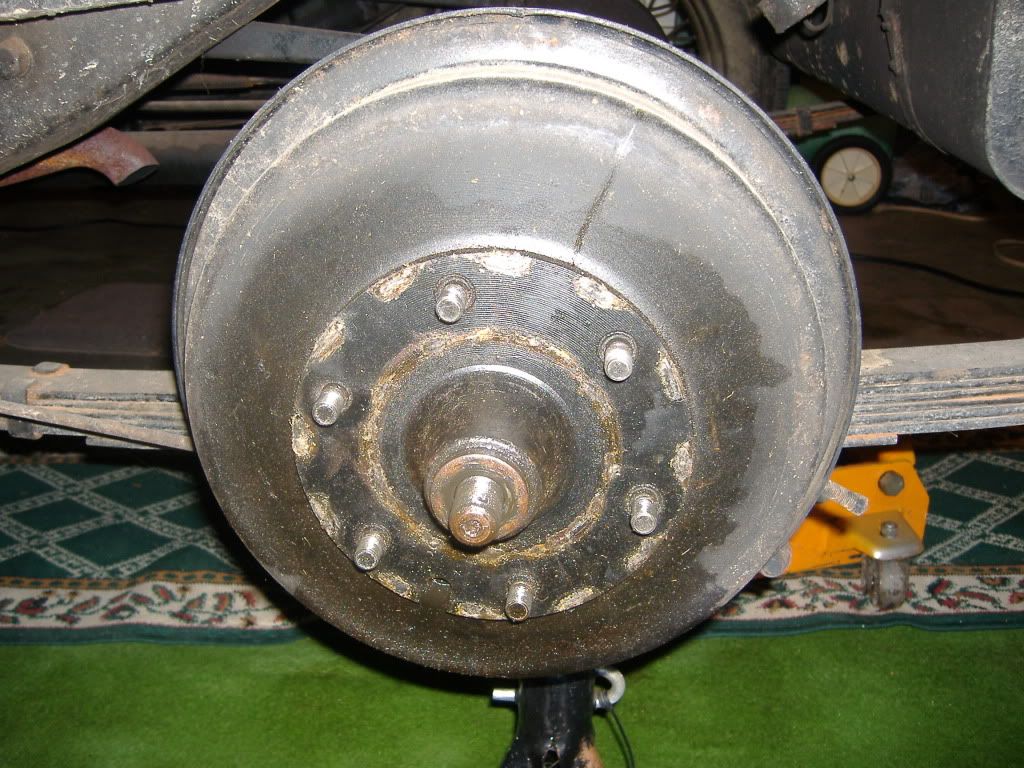

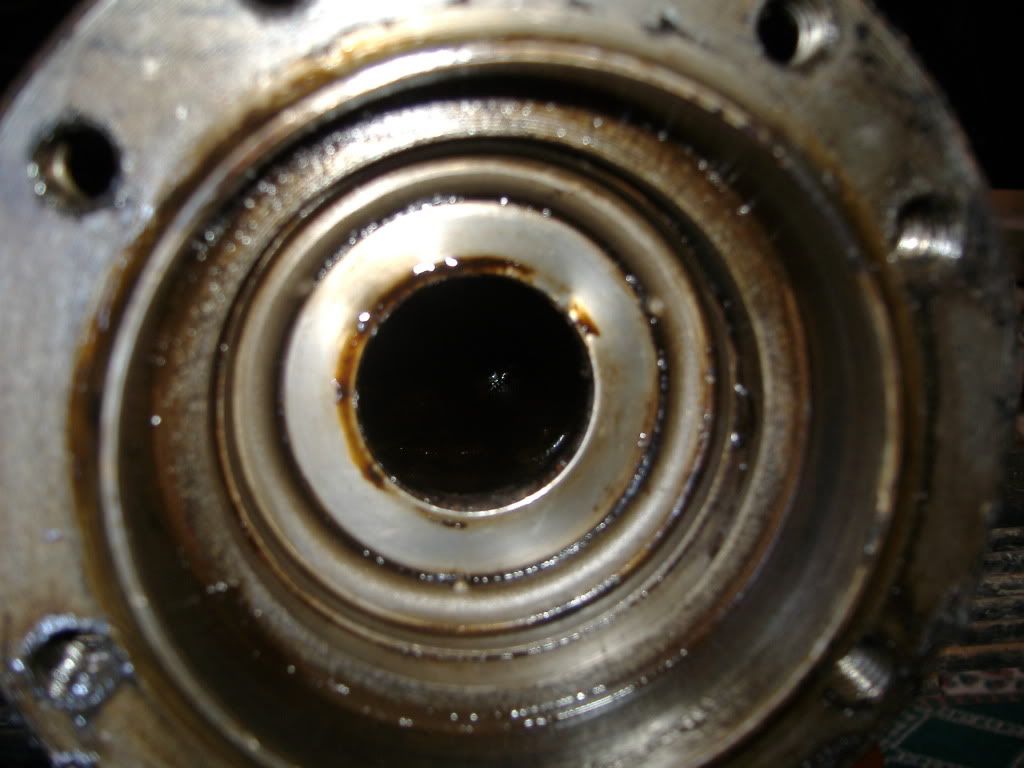

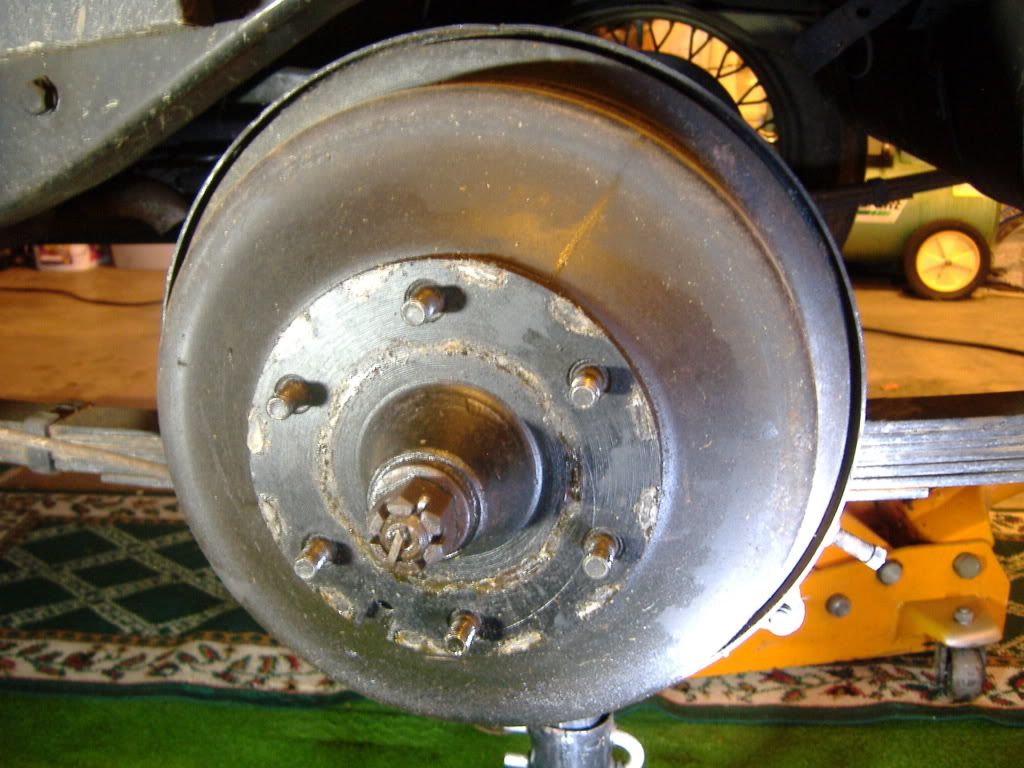

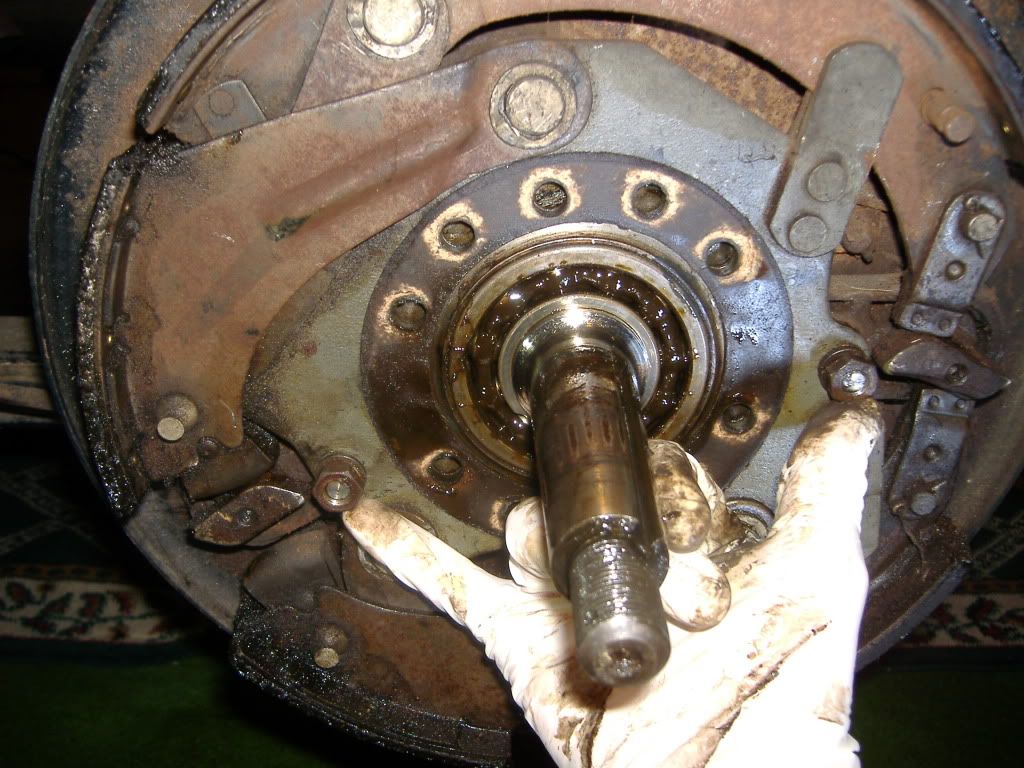

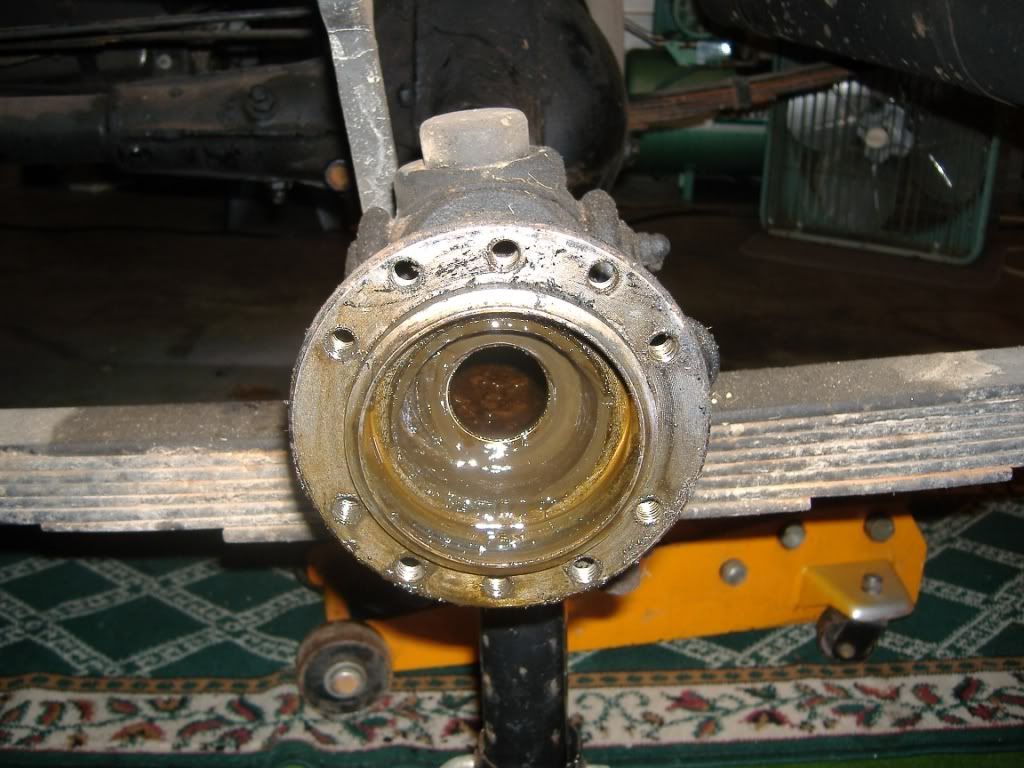

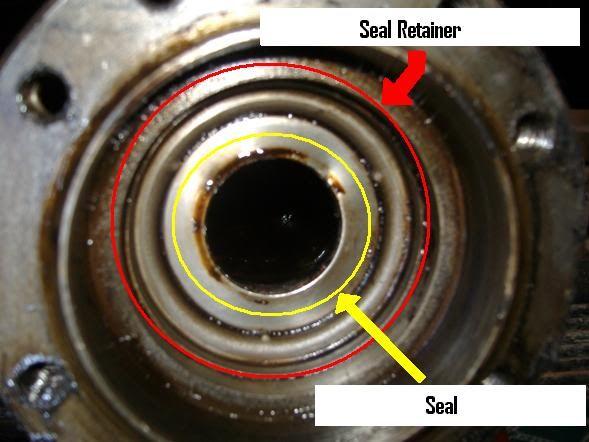

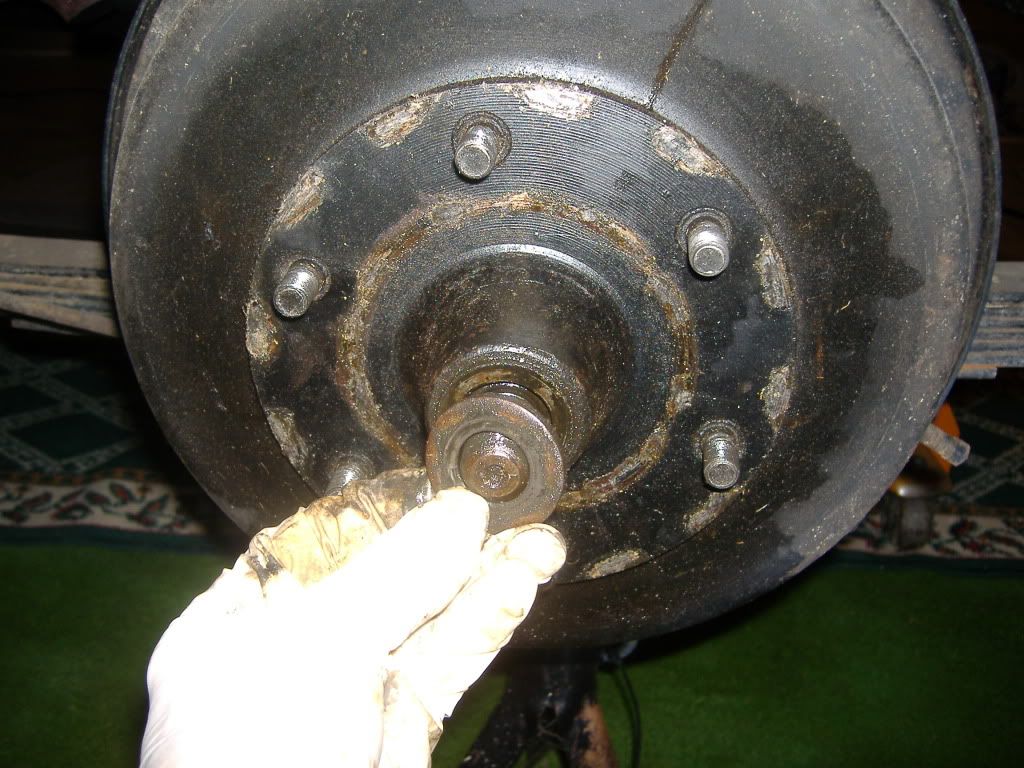

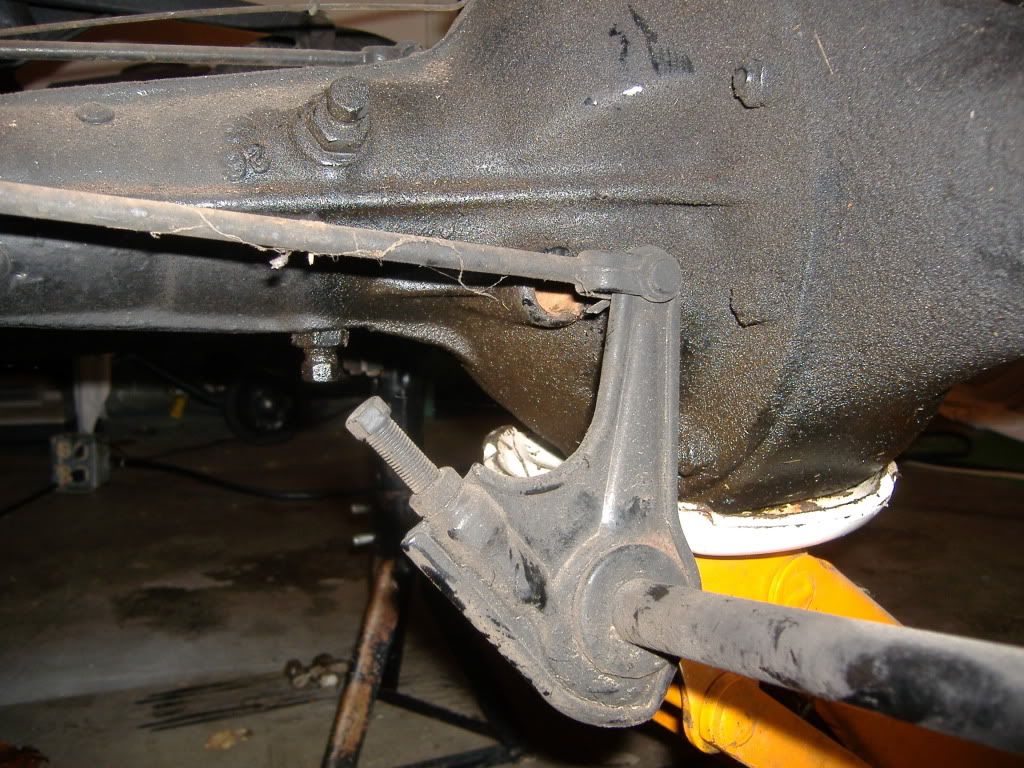

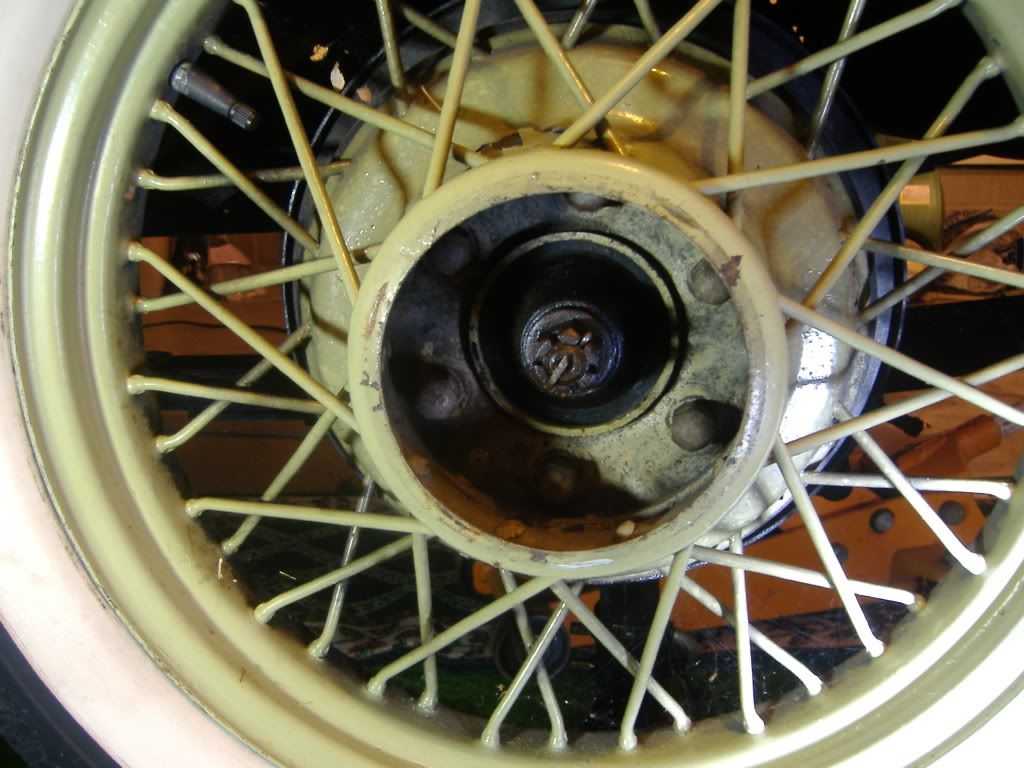

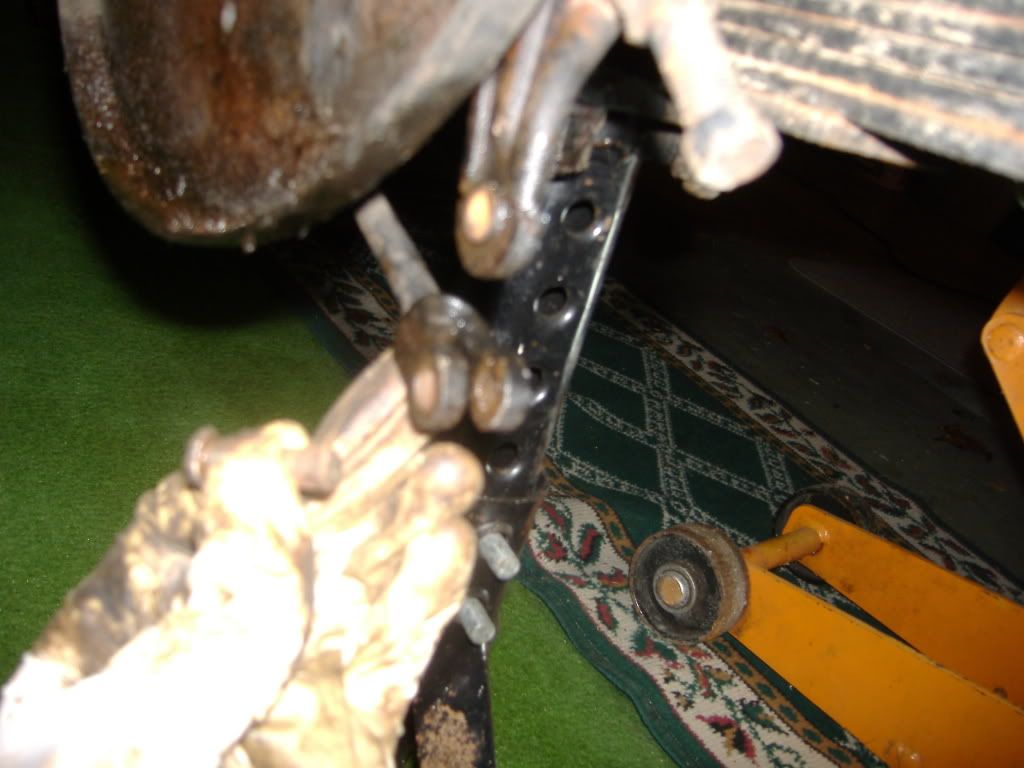

I removed the axle from my 1931 coach to replace the seals. Here are pictures of my disassembly process. I would like to add that you DO NOThave to remove the brake backing plate at all. Once you can see the actual bearings if you put the drum and nut back on and pull the drum against the nut the axle will slide out. I didn't find this out until afterward and it was extra work, but if you need to take that off then maybe this will help.
